A - Scan Machines (A Scan Biometers, Ophthalmic A Scans, Eye Ultrasound Biometers)

We are Manufacturer, Supplier, Exporter of A Scan Machines and our setup is situated in Sangli, Maharashtra, India. This product is also known as A Scan Biometers, Ophthalmic A Scans, Eye Ultrasound Biometers.

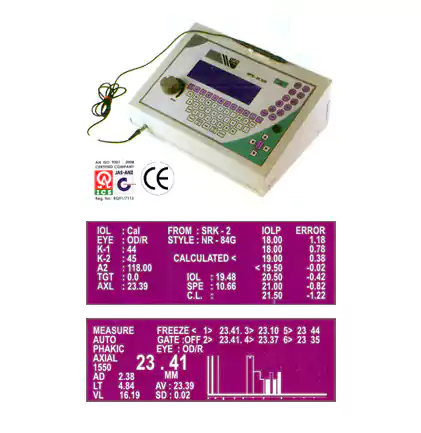

A - Scan Machines - US - 1000

Features

  • A compact and light weight US 100 'A' Scan Biometer measures highly accurate axial length with anterior chamber depth, lens thickness and vitreous length of eye.
  • Specially designed software eliminates corneal compression readings.
  • Facility to enter personal contrast and new velocities for new IOL material or silicon filled eyes.
  • Pre defined eye types handles most situations as Phakic, Pseudophakic, semidense, Dense catract
  • Automatic measurement mode eliminates reqquirments of foot switch for easy operation.
  • Can be upgrades to add Pachymetry.
  • Upgrade of water immersion technique option is available.
A - Scan Machines
REQUEST A QUOTE

Specifications

Probe 10 MHZ Solid, lightweight with red LED for fixation
Tip Radius Dia. 5mm (Concave)
Probe Mode Contact, Immersion (Immersion optional)
Converted Ultrasonic Velocity Phakic eye
- 1550 m/s (axial length)
- 1532 m/s (Anterior Chamber & Vitreous Body)
- 1641 m/s (Lens)
Aphakic eye
- 1532 m/s (axial length)
Measuring Range Axial length 15 – 46 mm
Measurement Mode Manual, Semi-Automatic, Automatic
Eye Modes Phakic, Aphakic, IOL, Dense1, Dense2, Silicon oil
Accuracy +/- 0.1 mm
IOL Formula SRK, SRK II, SRK-T, Blinkhost, Halladay
Display LCD with backlight 0.01 mm Resolution
Printer Built-in 3” Thermal Printer (optional)
Input 230 V AC 50Hz (110 V AC, 60Hz on Selected modes)
